FCX200 Dual - Spindle Inclined - Bed 12 - Station Bilateral High - Efficiency Lathe Mode

Specifications and Technica lParameters
ltem	单位/unit	FCX200
Maximum clamping range	Mm	∅200
Processing length range	MM	200-2000
Mlain spindle clarp body accuracy	mm	0.005
Precision of repeated clamping of workpiecas	Mm	<0.03
Maximum speed	r/min	1000
i.tain motor powver	kW	15
Overall dimensions 0 wide x High)	Mm	1700x2000
Mechine weight	Kg	9500
Working Accuracy
Processing the coaxiality of both ends		≤0.02
Total machining length error		±0.03

FCX200 Dual - Spindle Inclined - Bed Lathe

1. Product Introduction

2. Product Features

Machining Range

• Clamping & Length: The lathe can clamp workpieces up to ∅200mm in diameter. With a processing length range of 200 - 2000mm, it’s suitable for various component sizes.

Precision

• Clamping: The main spindle clamp body has an accuracy of 0.005mm, and repeated clamping precision is less than 0.03mm.
• Machining: It ensures ≤0.02mm coaxiality of both ends and ±0.03mm total machining length error.

Performance

• Power: A 15 - kW main motor drives the lathe at a maximum speed of 1000 r/min.
• Tooling: Equipped with two 12 - station servo turrets, it allows for flexible tool changes.
• Structure: The dual - spindle and inclined - bed design enables bilateral synchronous machining and efficient chip removal.

3. Product Applications

Heavy - Equipment Manufacturing

• Ideal for machining large shafts and gears for construction machinery, mining equipment, and agricultural machinery.

Energy Sector

• Used to produce components like turbine shafts, generator rotors, and pipeline fittings.

Aerospace Ground Support

• Creates high - precision parts for ground - based aerospace equipment, meeting strict industry standards.

Product Tags:

12 Station CNC Horizontal Lathe Machine



Bilateral CNC Horizontal Lathe Machine



Dual Spindle cnc horizontal lathe

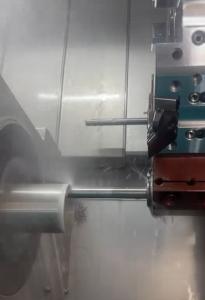

12 Station Bilateral CNC Horizontal Lathe Machine Dual Spindle Inclined Bed Images
