Name: 15kW Spindle Power High Precision CNC Lathe Machine 600kg Workpiece Capacity
Brand: H.SON
Price: 1 USD

Price : negotiable

Place of Origin : China

Brand Name : H.SON

MOQ : 1

Packaging Details : Different packaging methods are adopted according to different modes of transport.

Payment Terms : Western Union,MoneyGram,T/T

Contact Now

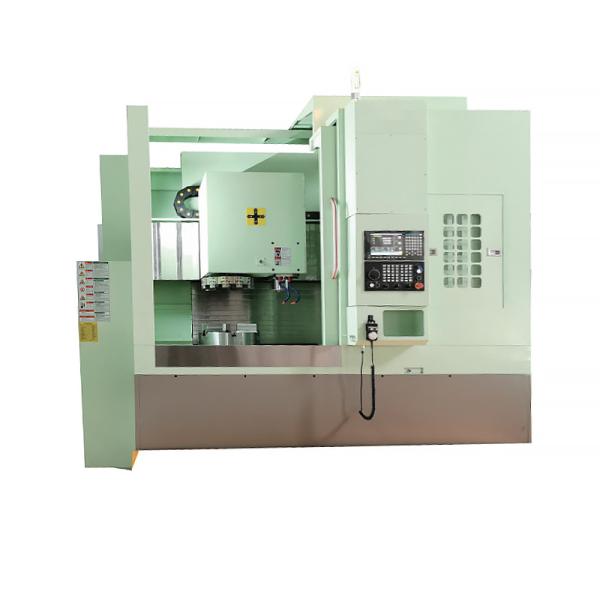

High Precision LV600M CNC Lathe Machine - 15kW Spindle Power, 600kg Workpiece Capacity

Technical Parameters:
Item	LV600M
Processing capacity
Maximum turning diameter on bed body	∅650mm
Maximum turning diameter	∅600mm
Maximum tuming outer circle length	550mm
Maximum turninginner hole depth	275mm
Maximum workpiece weight	600kg
Spindle
Nose end of spindle	A2-8
Spindie chuck specifications	15"
Maximum spindle speed	0～1500
Milling head spindle	BT40
Maximum speed of the millingspindle	8000RMP
Feed shaft
X/Z axis travel	1000/600mm
X/Z axis fast displacement	24/24m/min
X/Z axis screw specifications	4010/4010
X/Z rail specifications	45pin roller
Number ofX axis rail roots	3
Number of Z axis rail roots	2
Positioning accuracy (JlS)	±0.003/300
Repeated positioning accuracy (JlS)	±0.003
Motor
Spindle motor power	15kw
X/Z axis torque	8Nm/28Nm
Cooling motor power	0.49kw
Hydraulic station motor power	4HP
Tool change system
Knife Change Type	servo turret
Number ofknifepositions	12T
Standard knife cylinder size	25x25mm
Standard boring bar diameter	φ40mm
Mill head cutter library specifications	BT40robot arm type
Number of tool libraries	24T
General specifications
Power supply capacity	20KVA
Exterior dimensions (L X W X H)	3.22.128M
Net weight (approx)	8T

15kW Spindle Power High Precision CNC Lathe Machine 600kg Workpiece Capacity
