TD60: High - Efficiency Machining Center With Versatile Milling And Drilling

TD60 CNC Machine Product Introduction

Product Introduction

Product Features

1. Flexible Processing Range
   • It can handle workpieces with a processing diameter range from ∅10 to ∅60mm and a length range from 150 to 450mm. This flexibility allows for the machining of a wide variety of components.
   • The optional turning function can reach a maximum diameter of ∅60mm, and the effective length of the package ranges from 20 to 30mm, providing additional processing options.
2. Multifunctional Machining
   • Equipped with milling and drilling capabilities, the TD60 offers a milling depth of up to 3mm. The milling spindle speed ranges from 300 to 800 r/min, while the drilling spindle speed varies from 600 to 1600 r/min, suitable for different materials and machining requirements.
   • It can also perform center drilling with a drill diameter range from A2 to B10.
3. High - Power Main Motor
   • A 3 - KW main motor provides sufficient power to ensure smooth and efficient machining operations, enabling the machine to handle various cutting tasks with ease.
4. Exceptional Working Accuracy
   • The TD60 ensures high - precision machining. The milling length consistency is within 0.05mm, the center hole depth consistency is ≤0.03mm, and the face runout of the center hole is ≤0.03mm. The center hole surface roughness is Ra 1.6, meeting strict quality standards.
5. Compact and Robust Design
   • With overall dimensions of 2.2x1.3x1.6mm and a machine weight of 3100 Kg, the TD60 is compact enough to fit into various workshop spaces while maintaining stability and durability during operation.

Product Uses

1. Electronics Industry
   • In the electronics manufacturing, the TD60 can be used to machine small - sized components such as connectors, heat sinks, and electronic housings. Its high precision ensures that the parts meet the strict requirements of the electronics industry for dimensional accuracy and surface finish.
2. Automotive Component Production
   • It is suitable for producing small automotive parts like engine components, transmission parts, and brake system components. The ability to perform multiple machining operations in one machine reduces production time and cost, while maintaining high - quality standards.
3. Instrument and Meter Manufacturing
   • For manufacturing instruments and meters, the TD60 can create precise parts such as gears, shafts, and housings. The machine's accuracy and versatility make it an ideal choice for producing components with tight tolerances required in this industry.







TD60 Drilling And Milling Machine

800r/Min Drilling And Milling Machine

300r/Min cnc mill drill

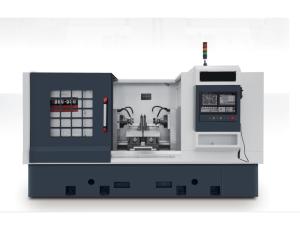

TD60 Drilling And Milling Machine 300-800r/Min Multifunctional Machining Images
